TrueZeroTarget® Electronic Target System, LOMAH

General Details

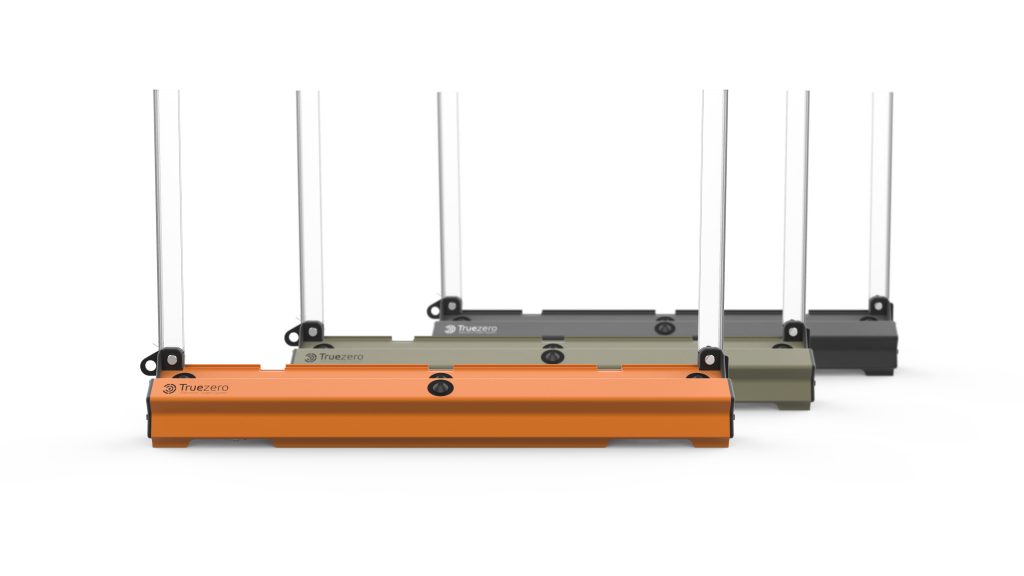

Click on tab «Documents» above for datasheets with full specs and images for the various TrueZeroTarget models; Individual, Range and OEM.

Plug-and-Play Wi-Fi electronic target system

Works without infrastructure, internet connection or cell phone signal

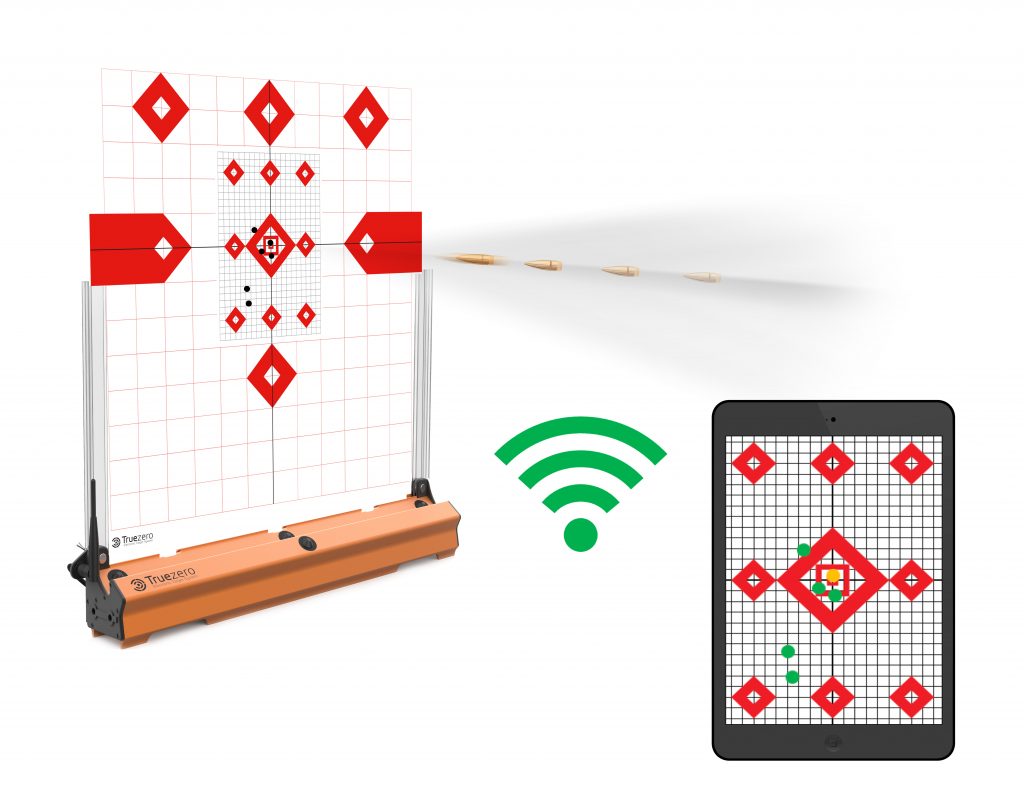

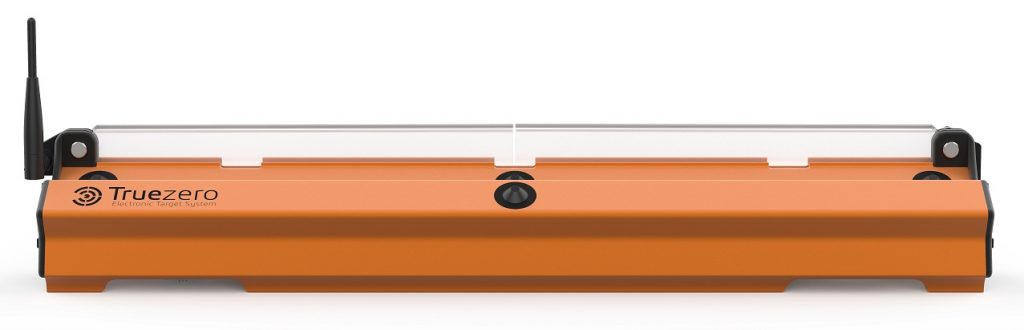

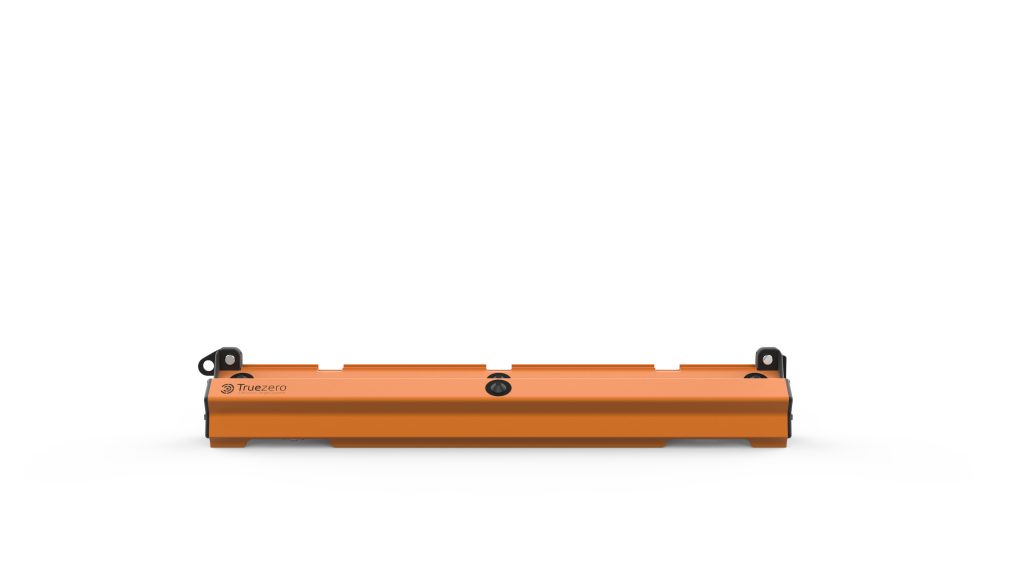

Place the TrueZeroTarget® sensor bar on a tripod or ground attachment. Aim it at the shooting position, insert the target face in the target holder, turn it on and connect your tablet, smartphone or PC via the built-in Wi-Fi.

That’s it! You are now ready to shoot and view bullet speed and hits displayed on the screen.

No wiring, target lifters, pit, internet or phone signal or any other infrastructure required. Perfect for the individual shooter or a club wanting to install an electronic sight-in target. The battery lasts for a whole day of shooting. Easily deployable as a personal target or sight-in target on an existing range with paper or electronic targets.

Use your own tablet or smartphone

The TrueZeroTarget’s built-in Wi-Fi connects with your tablet or smartphone just like the router back home. You don’t need internet or cell phone signal to connect with the target’s Wi-Fi.

Wi-Fi range with the supplied standard antenna is 2-400m line-of-sight for most tablets. Range can easily be extended to any distance by means of access points or low-cost high-gain antennas.

Works both indoors and outdoors

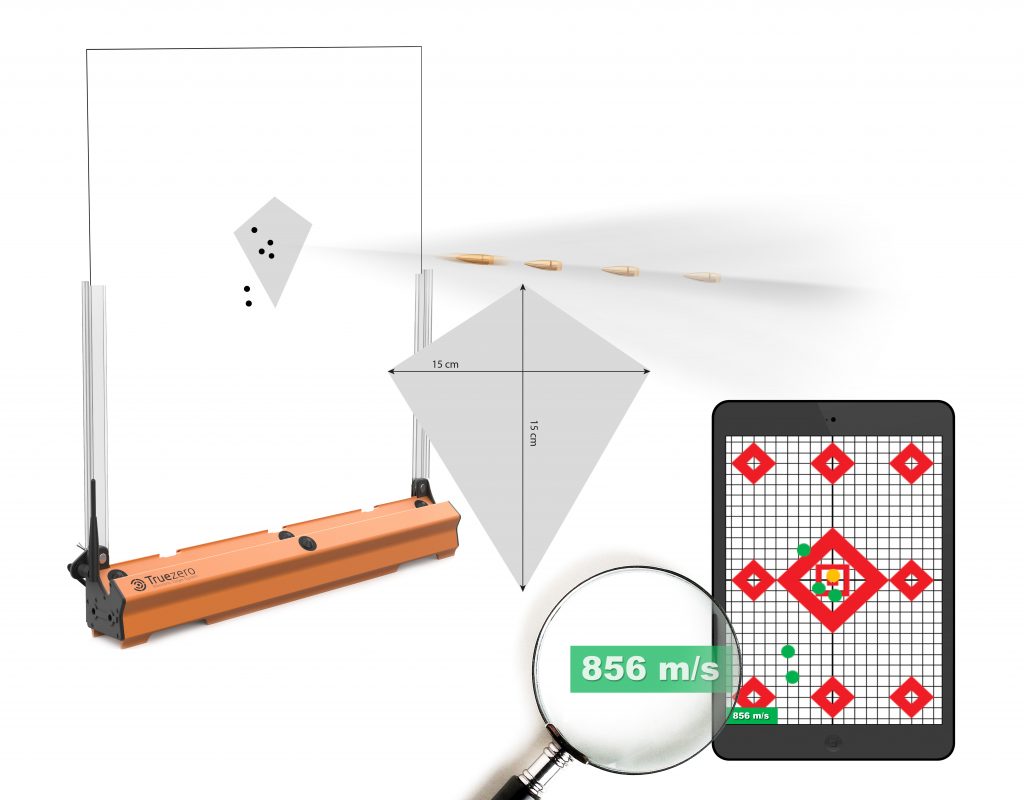

The TrueTeroTarget® acoustic LOMAH (Location Of Miss And Hit) is equally suitable for indoor shoot houses, shooting tunnels or outdoor shooting ranges. The detecting window can be set to the individual target or the whole detection area. This gives unparalleled flexibilty for designing everything from short-range multiple target configuration to extreme long range single target setups.

World class accuracy

Individual shot locations are accurate to 3mm at the center of the target. This is far better than you can aim with a scope with 1cm clicks at 100m. It far surpasses the requirements set by the International Sports Shooting Federation. ISSF requires an electronic target system to score shots to an accuracy of at least one-half of one decimal scoring ring. For the 300m rifle target the 9-ring is 5cm wide with required accuracy of 2.5cm. The TrueZeroTarget is with its 3mm accuracy 833% better than required!

Built-in shooting chronograph

The speed capture area returns bullet velocity at the target with 1% accuracy.

You’ll get shot location and velocity data for supersonic bullets at any distance. You can set your elevation turret with full confidence in a hunting situation.

True Point of Impact: True rifle zero

It’s a little know fact:  The closed acoustic  systems commonly used for competitive shooting  display hits  relative  to the  target center as determined by the sensors and not according to the actual target face.

As a consequence your gun’s zero  is not the true zero you would obtain on a paper target.  It may actually diverge by several centimeters.

This is of no consequence to a target shooter who scores  hits relative to the  screen  representation of the target. For you as a  responsible hunter on the other hand, you need  the confidence of a true zero.

TrueZeroTarget’s  acoustic  LOMAH (Location Of Miss And Hit) technology displays true rifle zero and true target face position of hits.

LOMAH is the preferred technology for armed forces for live-fire training. TrueZeroTarget®  now offers this advanced technology to hunters in a very convenient  and affordable package.

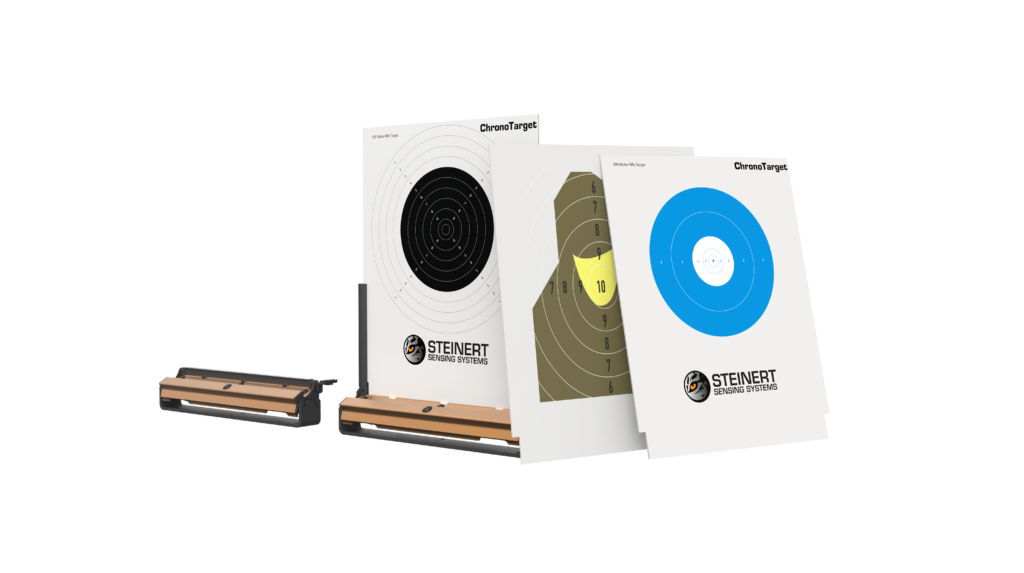

Any target face

Any target face can be printed on 5mm corrugated plastic and used with the built-in target holders.



Easy transition to e-target from paper

If the current bulky and infrastructure-demanding line-up electronic targets have been holding you back you now have no reason not to make the transition from paper to e-target.

Affordable

The TrueZeroTarget® plug-and-play e-target starts at only €3 490.

3490€3 490 ex VAT for model Individual 60cm sensor spacing
Technical Data
Sensor type: Ultrasonic transducers
Detection principle: Acoustic supersonic shock wave and temperature compensation
Minimum bullet velocity: 440 m/s (Mach 1.3)
Calibre range: 4.3mm (.17) to 84mm
Accuracy: +-3mm or better at center, +-9mm at extreme edge of standard 60cm target
Detecting window: 600x600 mm standard, scalable to 4000x30000 mm
Shooting angle: Azimuth: ± 16° Elevation: ± 5° (Confirmed, actual values are higher)
Target size: As detecting window or smaller
Target face: Any, software configurable
Target face material: Corrugated plastic 5mm thickness or cardboard
Minimum time between shots: 100ms = 600 rounds per minute standard, higher possible
Data transmission : Wi-Fi IEEE 802.11 b/g
Wi-Fi Modes of operation: As single stand alone unit AP mode (Individual). Infrastructure mode for multiple unit setup (Range, OEM)
Access mode: IP address
Wi-Fi range: Up to 300m with standard antennas depending on conditions, unlimited with access points and repeaters
Theft protection: Isolation barrier using WPA2 encryption and Dual SSID AP setup (Infrastructure mode only)
Scoring software: Windows operating system Win7 to Win10 compatible, Android, iOS
Delay from shot to presentation: Under optimal network conditions, less than 1 sec
Monitor: PC screen,tablet, smart phone
Size: 700x120x106mm for 600x600mm model
Weight: 4.0kg for 600x600 model
Power: Battery or 100-230VAC 50-60Hz using power adapter
Battery: Built in LiFePO4 3.2V 12000mAh
Battery life: Up to 16 hours continous operation, depending on temperature
Start up: Less than 10 sec
Environment rating: IP66
Compliance: CE, FCC class A
Operating temperature: -30 to +70 °C
Harmonized System Code: 90.31.8000
Buy

Find a distributor or dealer close to you

No distributor in your area?

ITAR free & OEM solutions

Configurable for OEM solutions

The LOMAH system can be configured to almost any requirements for target size, communications, power, detecting windows, accuracy and rate of fire. The TrueZeroTargets customization options make it suitable for regular ranges or to be used with pop-up SIT or SAT, stationary infantry or armory targets. These targets may be used for infantry live-fire training or for air-to-ground fire.

ITAR free

The TrueZeroTarget is ITAR free and exportable to most countries of the world.
